pimentel fonseca, hero img
- pimentel fonseca house -
01
pimentel fonseca, concept diagram

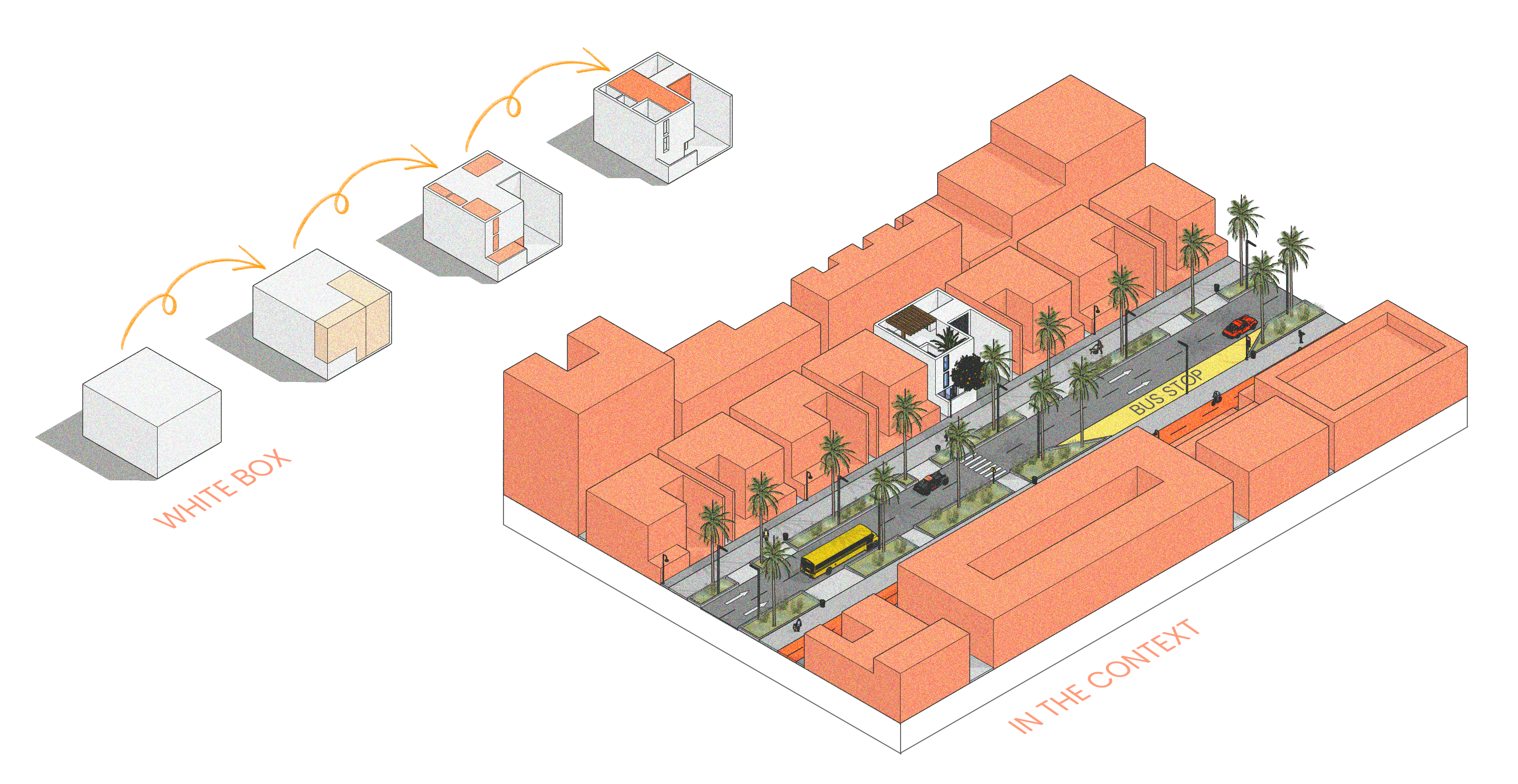

concept diagram

02

legend

  • → - main entrance
  • in.y - inner yard
  • k.li - kitchen & living
  • lr - laundry room
  • s - studio
  • bt - bathroom
  • ex.y - external yard
  • p - parking
  • b - bedroom
  • mbt - main bathroom
  • mbr - main bedroom
  • rt - roof top
  • h - hallway
03

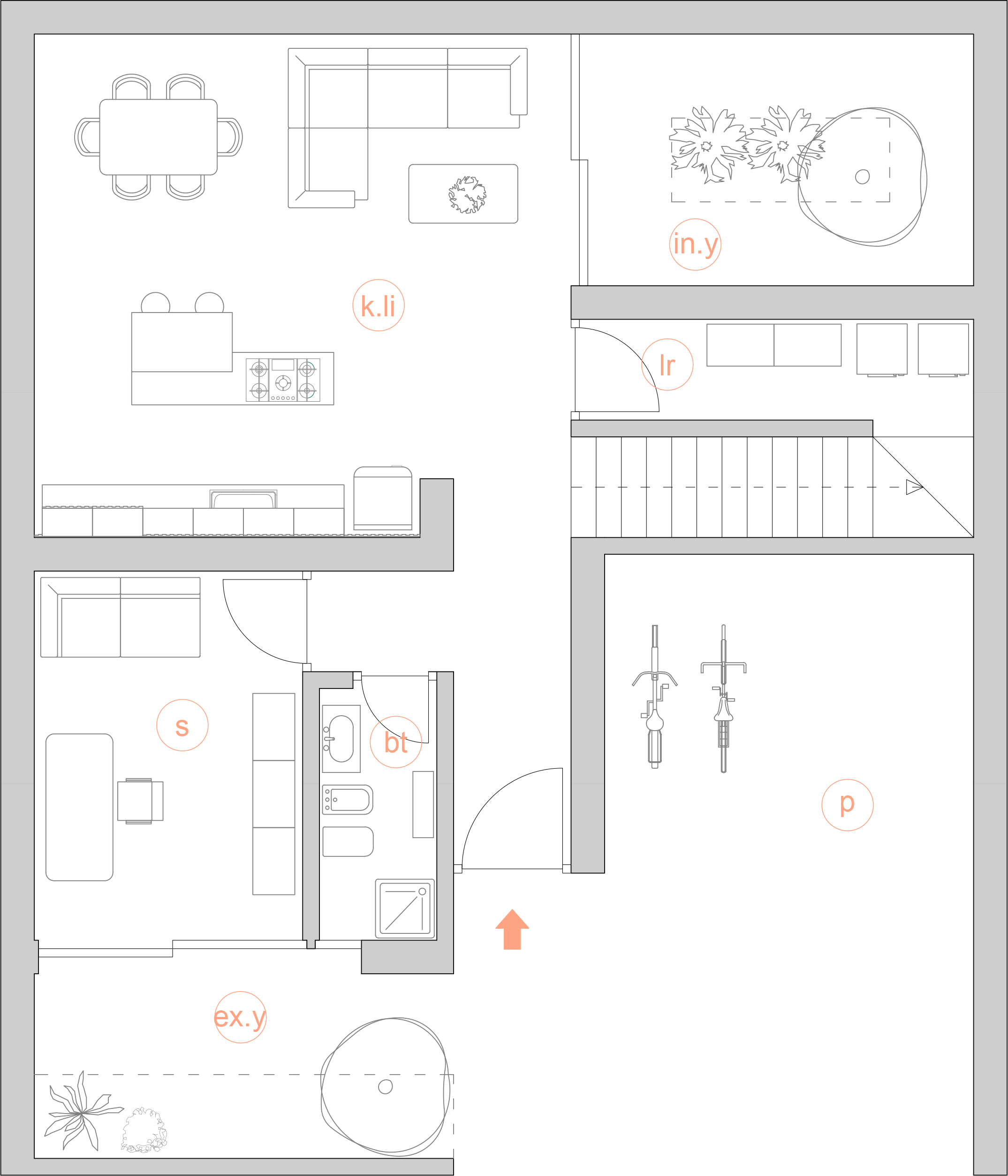

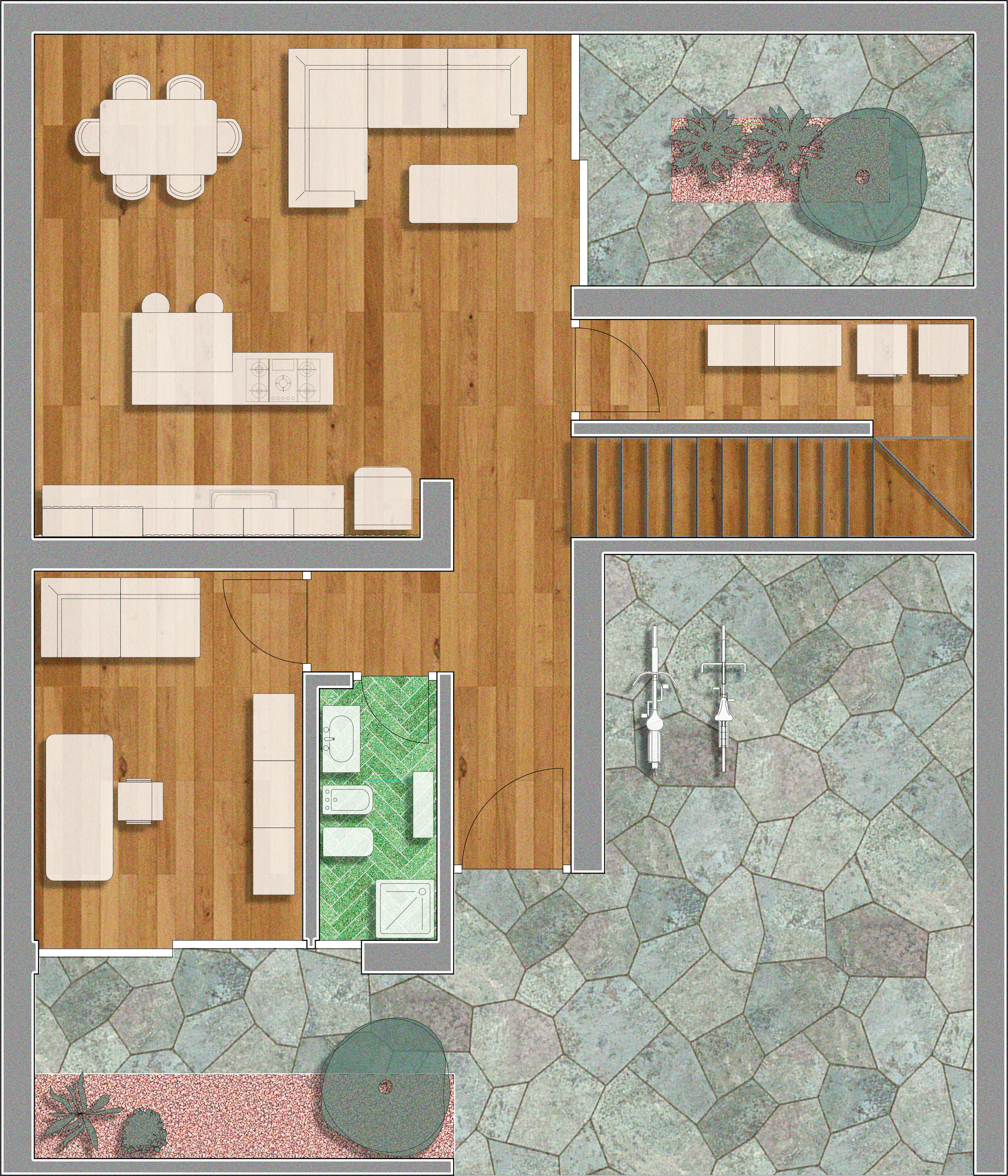

ground floor
ground floor

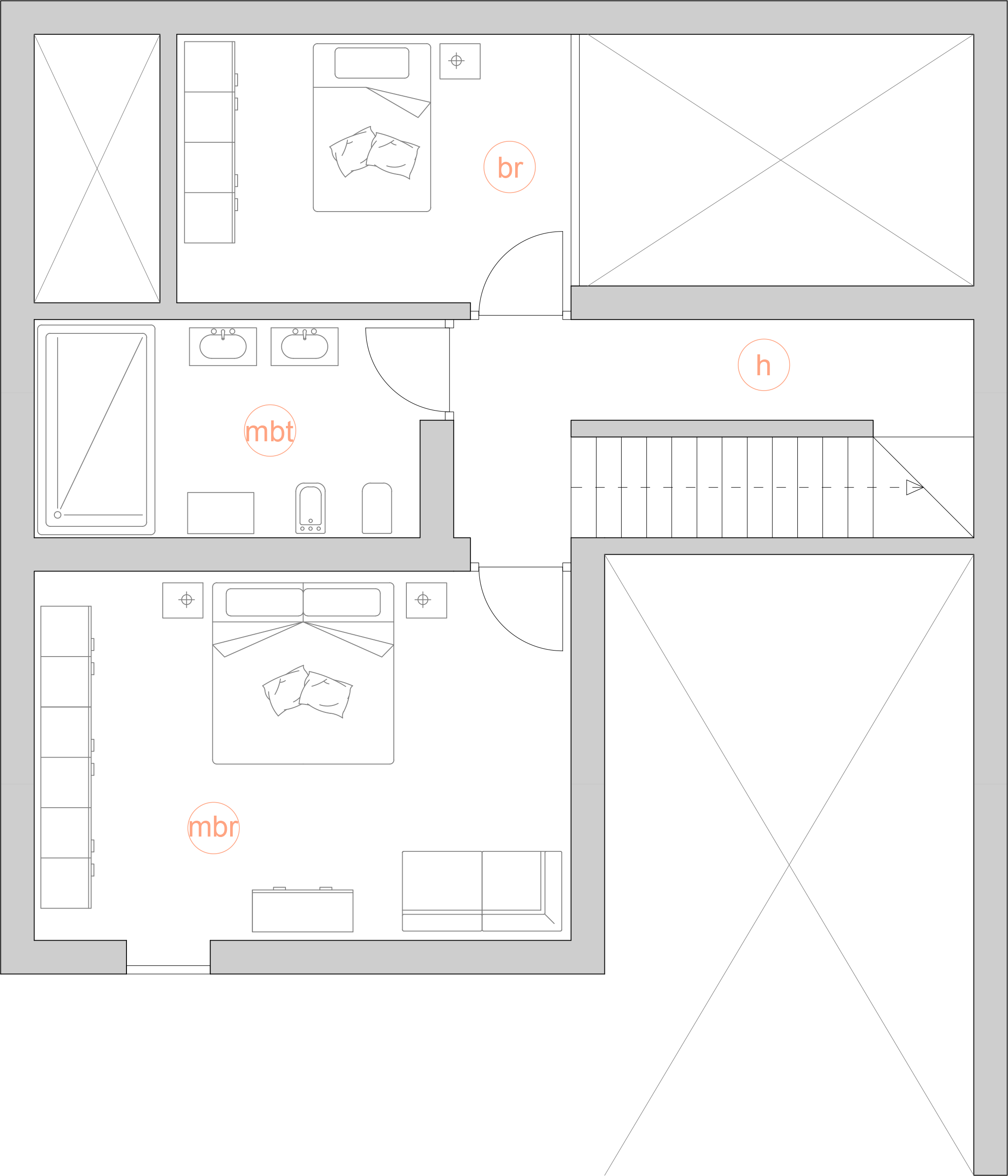

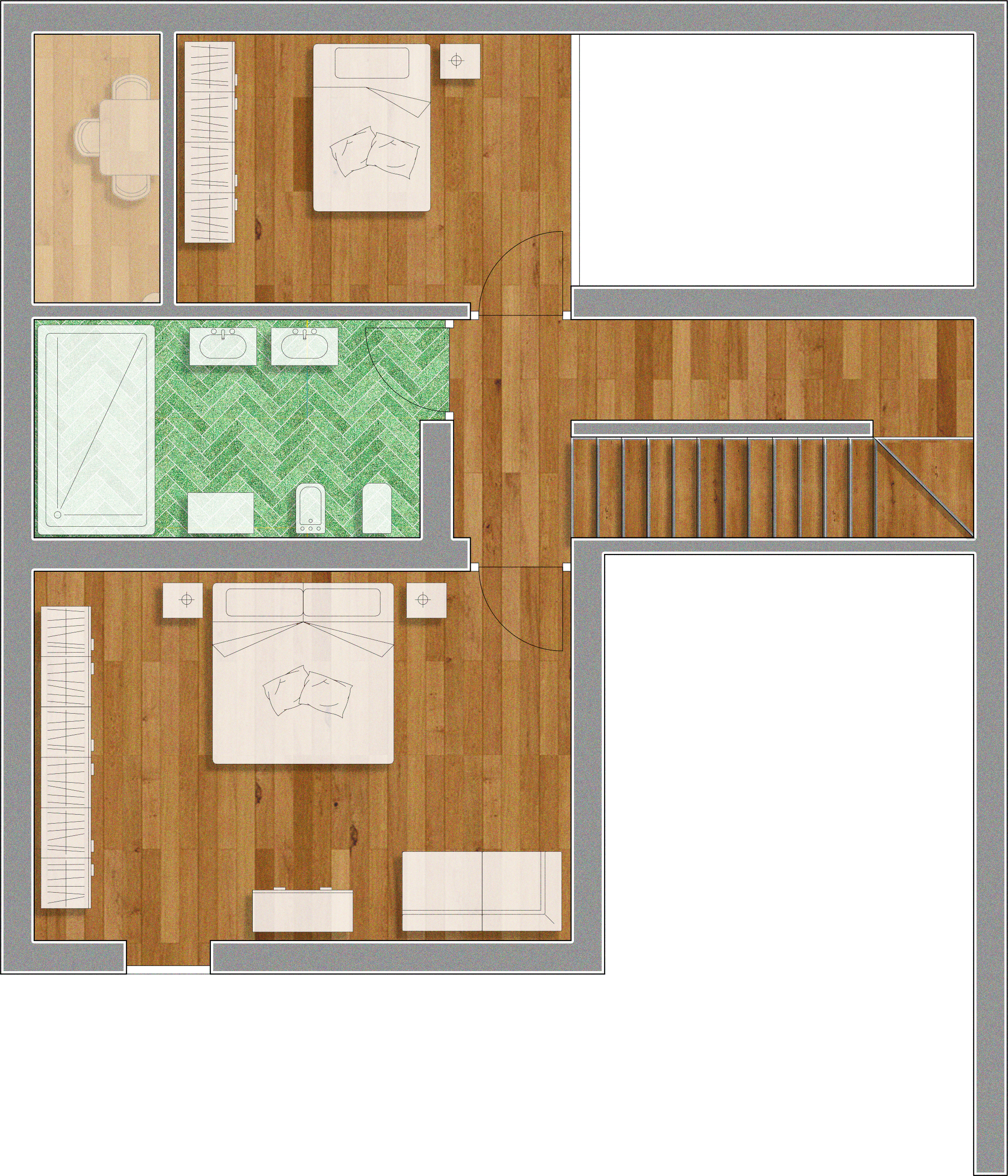

first floor
first floor

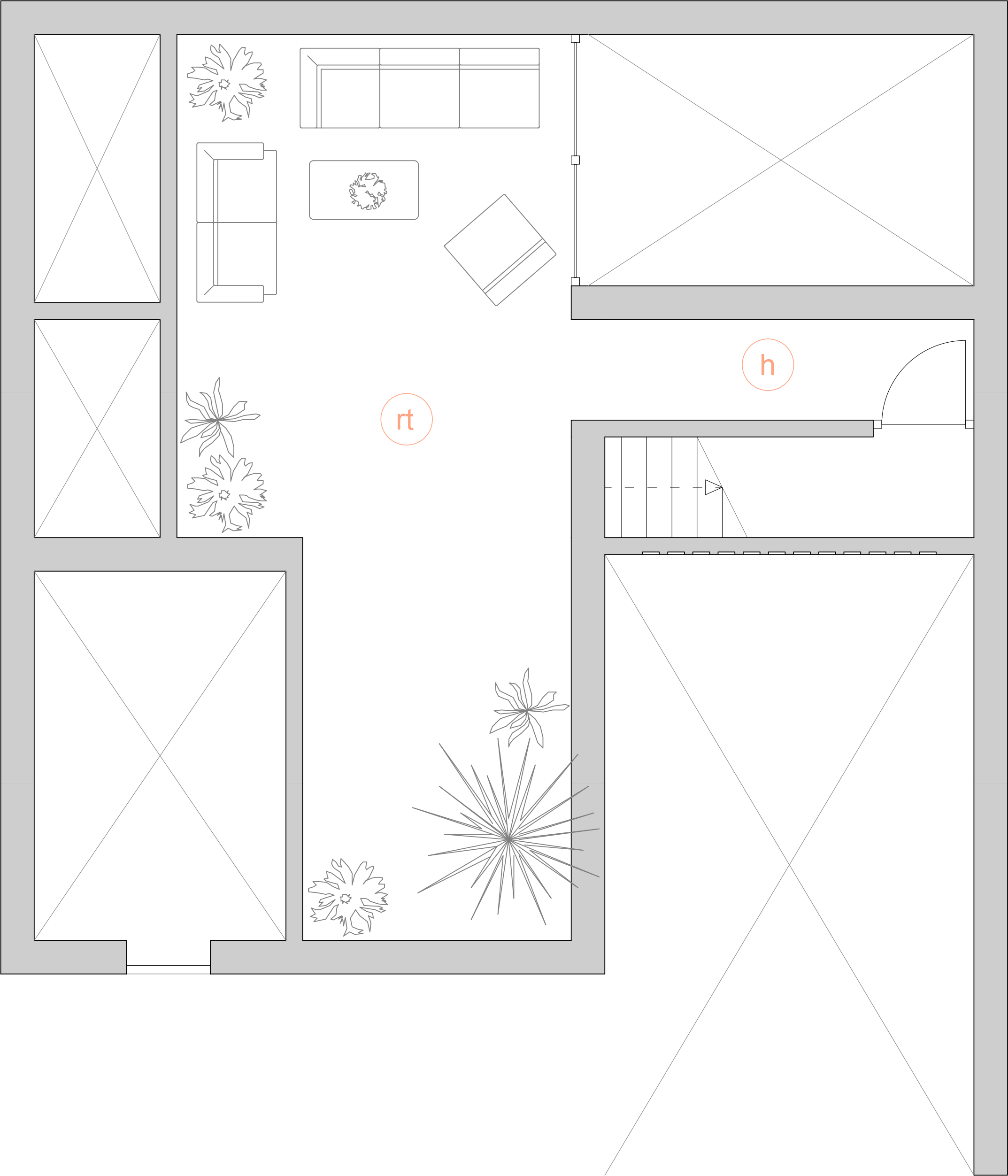

roof garden

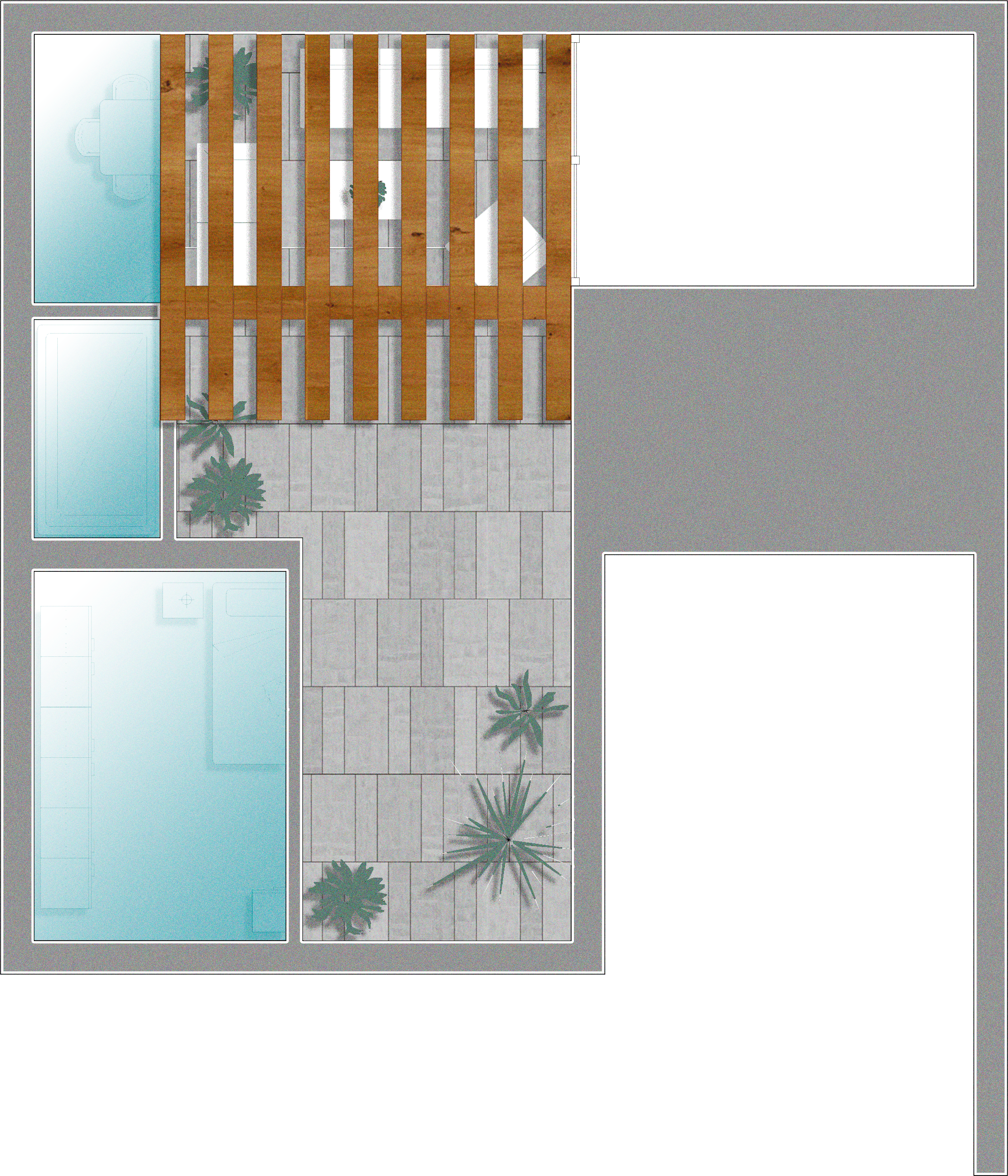

roof top

dimensions

ground floor = 91,24 sqm, H. 2,40 m

ground floor = 50,81 sqm, parking & ex. yard

first floor = 72,48 sqm, H. 2,40 m

roof top = 49,32 sqm

sxylight = 22,2 sqm

tot. 163,72** sqm, H.tot 8,50 m

** habitable covered area

three people live plus cats & dogs

04

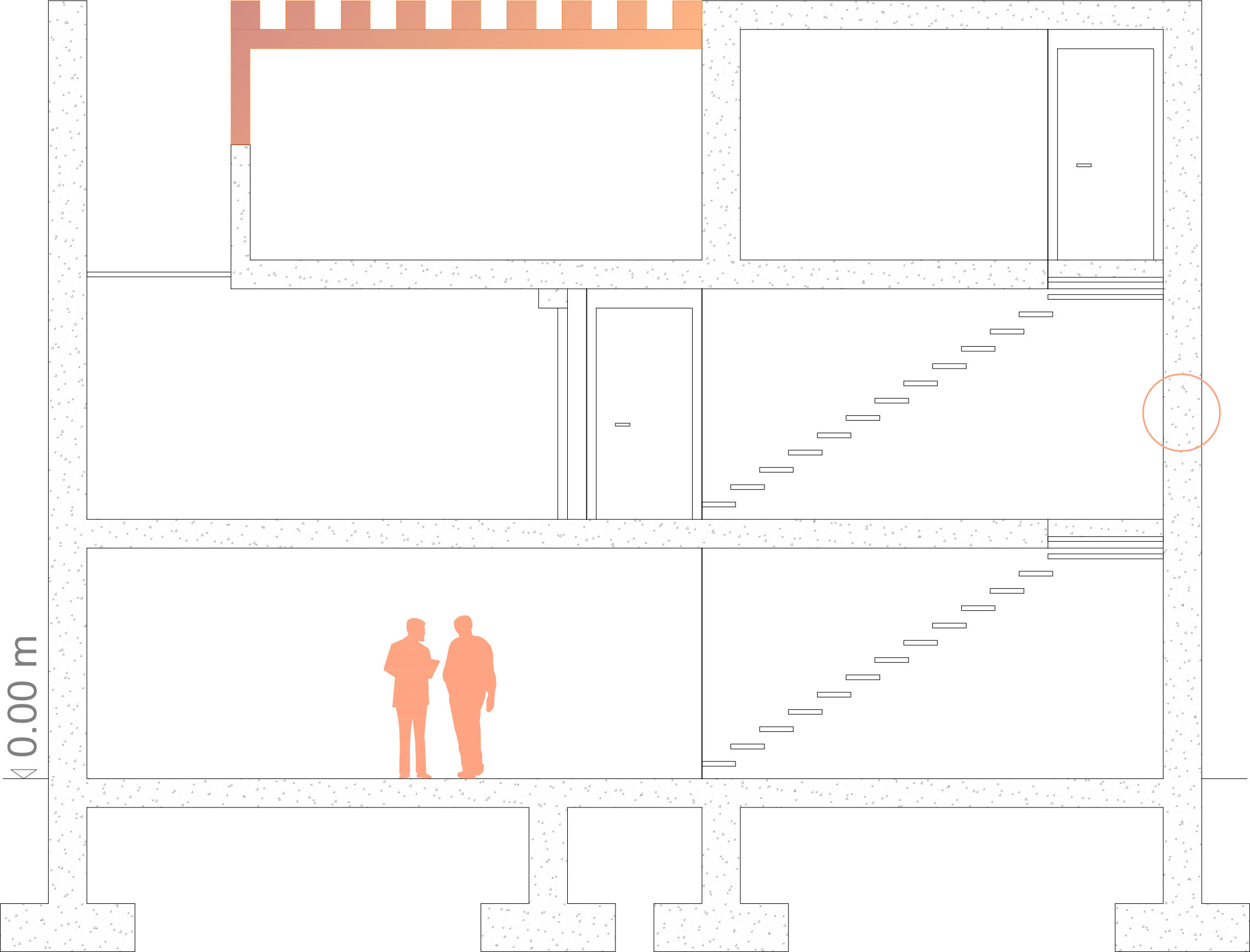

section
section

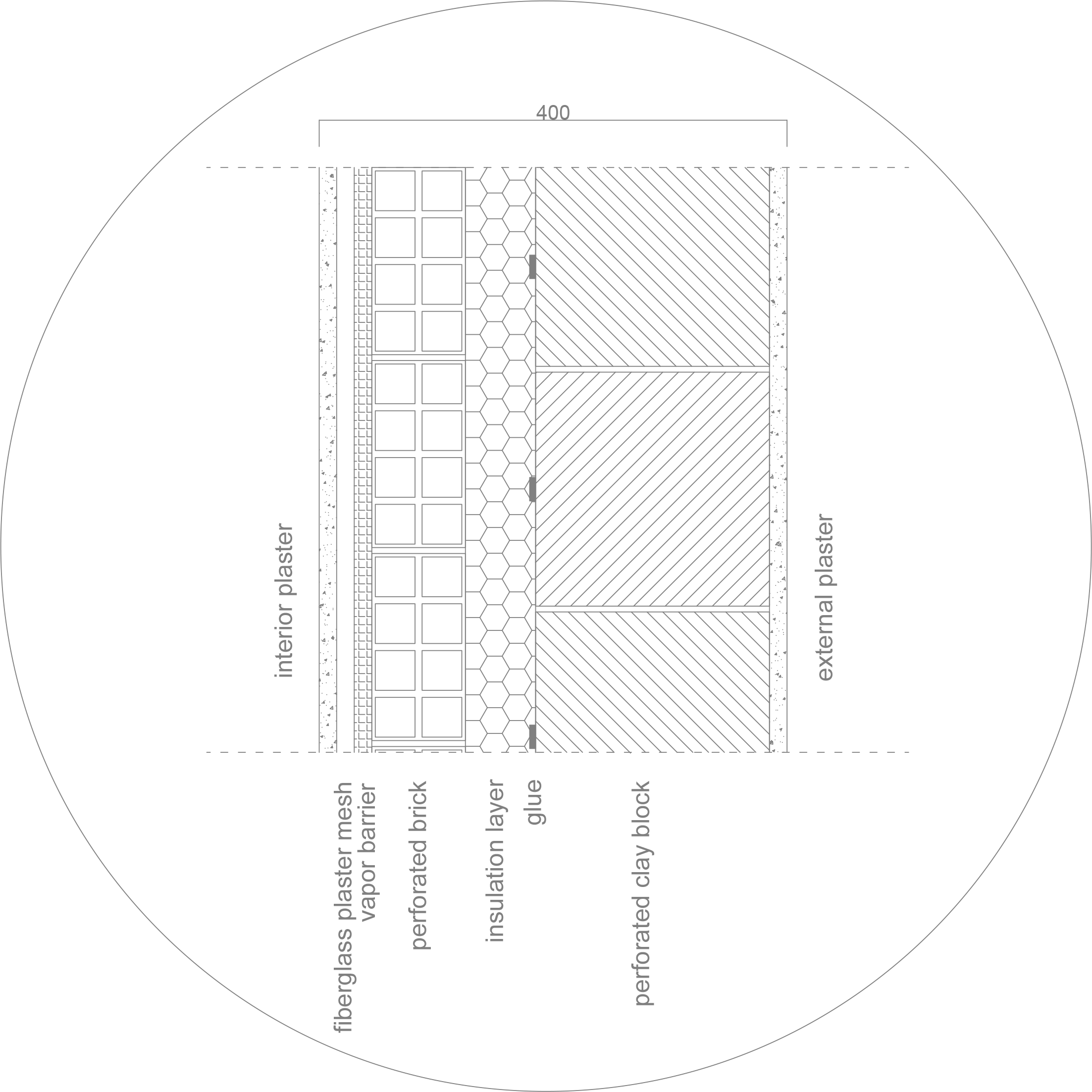

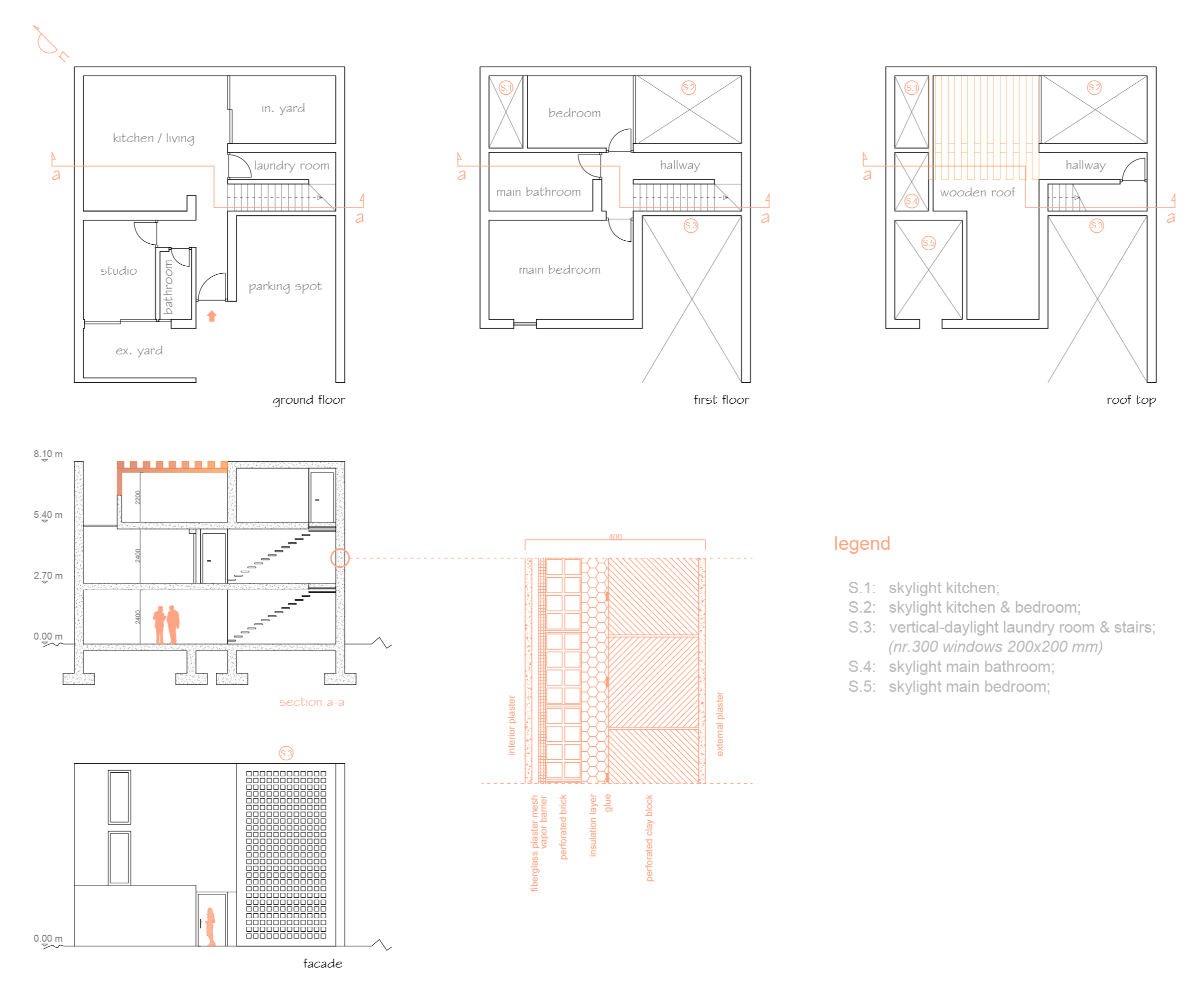

detail wall internal.external
details wall

storytelling

The house is closed on three sides and receives natural light from the street front and from above. The ground floor includes a study with its own courtyard, a service bathroom, and a kitchen-living area facing a courtyard that brings light to the main spaces. A wall with 300 skylights illuminates the staircase and part of the laundry room. The upper floor contains two bedrooms and a large bathroom lit by ceiling skylights, while the top level features a green terrace visually connected to the courtyard and the living room.
